Name: Aluminum Anodes for Marine Engineering
Brand: WEITONG MARINE
SKU: 03480
Availability: InStock
Rating: 5 (1 reviews)

Home > IMPA Marine Material > 67 - Metal Sheets,Bars,et...

Description

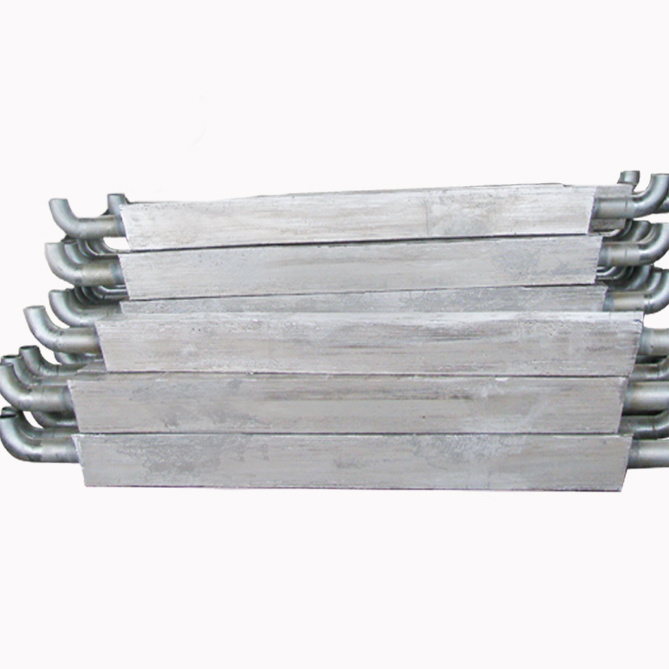

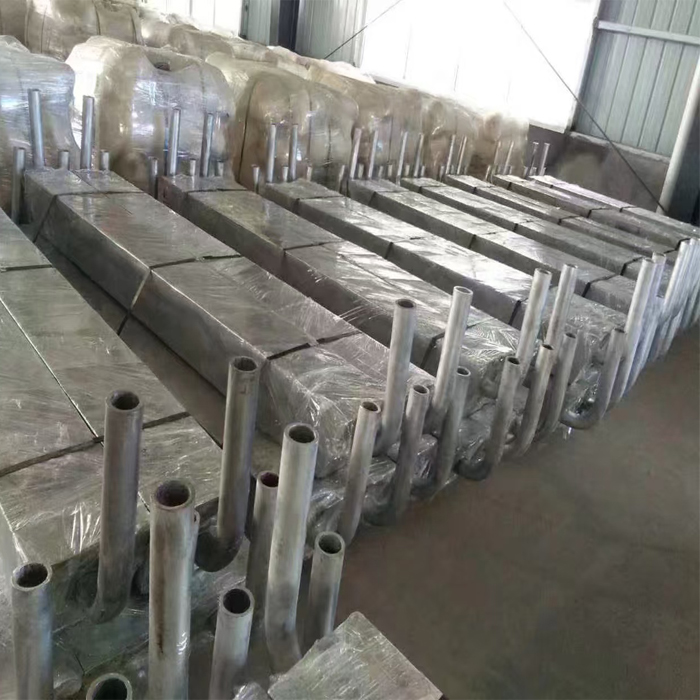

Aluminum Anodes for Marine Engineering

Product Features：

·Light weight, excellent electrochemical performance, low driving voltage, high current efficiency; environmentally friendly, uniform dissolution and long service life.

Application Scope:

·Suitable for ships, port engineering facilities, submarine pipelines, offshore wind power platforms, etc. in seawater medium;

·Transmission pipelines, underground fresh water pipelines, chemical storage tanks, etc. in brackish water medium.

·It is also applicable to scenarios requiring cathodic protection and having environmental protection requirements.

Common Specifications and Models：

Model	Specifications/mm	Weight/kg
Model	L × (TBW + BBW) × H	Weight/kg
AI-1	2300×（220+240）×230	310
AI-2	1600×（200+210）×220	190
AI-3	1500×（170+200）×180	130
AI-4	900×（150+170）×160	58
AI-5	1500×（148+178）×170	120
AI-6	850×（180+220）×180	85
AI-7	800×（200+280）×150	80
AI-8	700×（160+220）×180	72.5
AI-9	1250×（115+135）×130	26
AI-10	1000×（115+135）×130	46
AI-11	750×（115+135）×130	35
AI-12	500×（115+135）×130	23
