15ppm Bilge Alarm

Marine 15PPM Bilge Alarm Main Performance Indicator
15ppm Bilge Alarm is an important part for bilge water separation system, mainly used to
continuously monitor oily wastewater in bilge as well as chemical industry, oil field and environmental protection and others, with followed function and characteristics, result display, audio-visual alarm when the oily waste water is more than 15ppm, oily wasterwater discharge control, 15ppm oil-water separator working station display, printer for history storage and track.

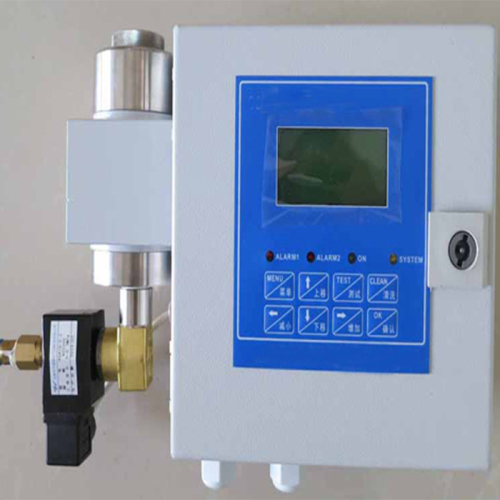

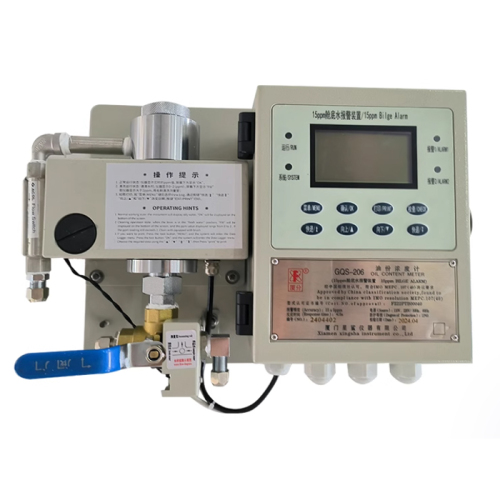

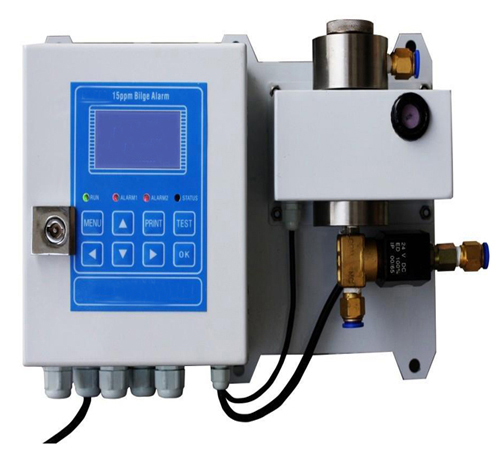

Marine 15PPM Bilge Alarm
Marine 15PPM Bilge Alarm device is designed in accordance with the International Maritime Organization MEPC. (49) resolution 107, approved by the China classification society (CCS) , is the latest generation monitiring instrument, applicable to ships, continuous monitoring of ship barge oil, with functions of 15 PPM transfinite alarm and control of oil conent. It is usually used with 15 PPM bilge oily water separator.
Function Test
1) Run oil free water through the instrument to purge the system.
2) Adjust the flow rate through the unit by using the small screws in the cell cap. Taking out a screw will increase the flow rate. NB: The flow rate should be checked on both, the clean water supply and the separator sample supply. If the clean water supply is obtained from a high pressure source, the flow rate will be higher than from the sample point. The flow rate is not influencing the accuracy of the instrument. The adjustment is only important for the time delay between the sample point and the monitor.
3) Switch on the instrument and make sure, that the Power LCD is illuminated and it displays the number "EE", with the fault LED on. Allow a few minutes for the system to warm up and stabilize. It works when the fault LED off and measure value displays.
4) The monitor will display "0" with clean water; if the value is higher than 0, it means there is air mixed up. Then it is necessary to check the entrance components and sample water pipeline and reset the position.
5) Through the front control panel offset to operate the display "0".

Marine 15PPM Bilge Alarm Main Performance Indicator

Range	0-30mg/l (up to 50mg/l)
Accuracy	>5mg/l
Linearity	>2%
Display	LCD
Voltage	220VAC/110VAC ±10% 50Hz/60Hz 5%
Power	10VA
Alarm Point	1-15ppm
Factory Setting	15ppm
Alarm output	Two-way relay output
Alarm Display	Yellow LED
Size	360mmW×240mmH×105mD
Protection Class	IP45
Weight	7KG
Connection	R 1/4"
Standards	IMO.Res.MEPC.107(49)Resolution

Quality Assurance and Service

1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service

If you have any question or inquiry, please feel free to contact us for more details.
