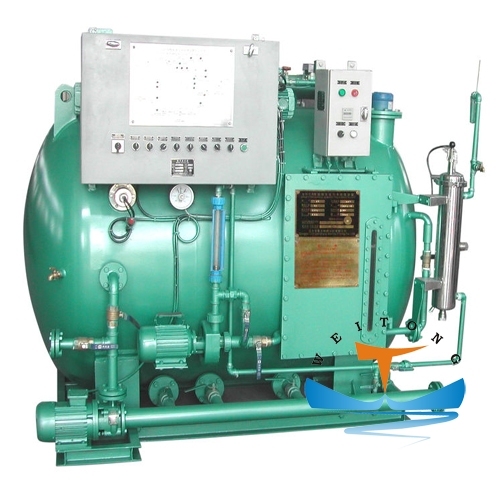

Marine Sewage Treatment Plant

Marine Sewage Treatment Plant
Marine Sewage Treatment Plant has the advantage of less occupied areaexcellent impact load resistance ability, uses activated sludge, contact oxidizing and principle of biologic membrane to digest the organic pollutant, which can treat sewage effectively and reach at the IMO new effluent standard or other stricter requirements.

Description

Marine Sewage Treatment Plant can be used in terrestrial sewage, besides in ship vessels and oil platform. The water quality after treatment can reach the national reuse water quality requirements. It is also applicable to treat the galley, shower drainage which is calle"dgrey water"on condition that the"grey water"is pretreated and there should select a bigger capacity model to match with. This device has obtained one item of Authorized Patent and one item of Practical new patent, meanwhile has been obtained the Type Approval of CCS and IMO circular in April 2009, and it in February 2011 by Germanischer Lloyd(GL)type approval certificate MED made, while providing ABS, DNV, BV, RS and other classification societies certificate.

Marine Sewage Treatment Plant Details

1, Adopting horizontal circular design, ellipse closures on both ends, pressure resistance and compact structure.
2, The device is adopted auto-control, and compliance with the requirement of 24-hours unattended cabin.
3, Adopting the"MBR"technology, devices allow to the narrow size, and solve the conflict of small space of cabin, but big volume of device.
4, The intermittent aeration in bio-membrane tank and hollow fiber membrane tank, form the process of"aerobicanoxic", and resolve the problem of"nitrogen and phosphorus removal".
5, The device is adopting the principle o"fair-lifting"to transfer the sludge from sediment tank and membrane tank to aeration tank, meantimes the"pump stops and air never stopped", so as the scale on the membrane surface comes down. Due to back flushing and clean the membrane"online"usd technology patent.
6, "On-line"cleaning technology, making the dirt on membrane off automatically, recover membrane flux. It can be solved the problem of opening the cleaning or replacement of membrane difficultly caused by the small space in cabin.
7, The effluent after further treatment can be reached at the requirement o"fwater recovery".

Some Other Types

1 Marine Sewage Treatment Plant
2 Biochemical Sewage Treatment Plant
3 Marine Black and Gray Water Treatment and Water Recovery
4 SystemMarine Self-riming Grey Water Pump
5 Marine Sewage Comminting and Disinfecting Holding Tank
6 Marine Vacuum Collection System

Types
Capacity(persons): 15, 20, 25, 30, 40, 50, 60, 80, 100, 120, 150, 200, 250, 300, 400

		SWCM-15	SWCM-30	SWCM-50	SWCM-60	SWCM-100	SWCM-200	SWCM-250	SWCM-400

Treatedload	Average load(l/d)	1190	2310	3780	4480	7700	14700	18200	30800

	Peak load(l/h)	149	289	473	560	963	1838	2275	3850

	Organic load(kgBOD5/d)	0.595	1.155	1.89	2.24	3.85	7.35	9.1	15.4

Rated capacity(p)		15	30	50	60	100	200	250	400

Max capacity(p)		17	33	54	64	110	210	260	440

Electricity		AC380V,50HZ,3Φ/AC440V,60HZ,3Φ

Power(kw)		2.25	2.5	3	3.5	4	6	7	11

External dimensions LWH		1850*	1980*	2300*	2650*	2706*	3630*	3880*	5980*
		1200*	1500*	1700*	1700*	2000*	2200*	2400*	2400*
		1400	1650	1820	1830	2200	2350	2570	2600
Weight	Dry weight(kg)	1000	1200	1450	1600	2200	3000	3300	4200

	Wet wight(kg)	2283	3500	5073	5270	8268	13267	16538	25417

Language

Language

Marine Sewage Treatment Plant

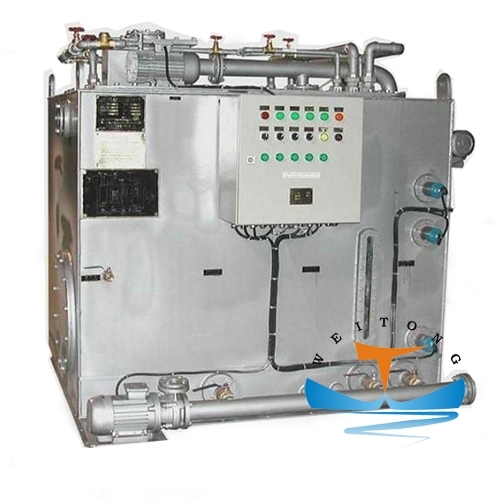

SWCB Sewage Treatment Unit
