Marine Shark Jaw

Deck Equipment Fork Type Marine Shark Jaw

Shark Jaw is an important anchor handling device use for clamping anchor chain or steel wire so as to avoid sliding, composed of shark jaws welded on stern deck, towing pins, stern roll, hydraulic pump unit, electronic control system. We offer two types of Shark Jaw, one is fork type shark jaw, the other one is triplex type shark jaw with towing pin, if you are looking for any kind of Shark Jaw/Towing Pin, pls don't hesitate to contact us for more details

Features
Work with the hydraulic pump station
Control: Local or Wheel house remote control panel
Retractable shark jaws flush with the deck when not in operation
Replaceable jaw inserts are available for different chain sizes
Quick release system
Watertight cover to avoid the water leakage to the cabin

Application:
Suitable for the anchor handling operations of tug, anchor handling and supply vessels
Available accessories: towing pins, remote control panel, hydraulic pump station

Certificate:
*Classification Society: CCS, ABS, BV, DNV, GL, RINA, LR, RMRS, etc.
*NDT reports
*Official certificates

Specification
1.Safe Working Load: 80~750tonnes
2.Max. Chain Size:7"(177mm) chain
3.Max. Wire Size:7''(178mm) steel wire rope
4.Electric/Hydraulic diven

Shark Jaw Model	Towing Pin Model	Bollard Pull (ton)	Holding Capacity (ton)	Power Reqired (kw)
SJ-100	TP-100	40	100	15
SJ-200	TP-200	60	200	22
SJ-300	TP-300	85	300	22
SJ-400	TP-400	120	400	30
SJ-500	TP-500	150	500	30
SJ-700	TP-700	200	700	37

Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service

If you have any inquiry or comment, please feel free to contact us.
Ms Kate

Language

Language

Marine Shark Jaw

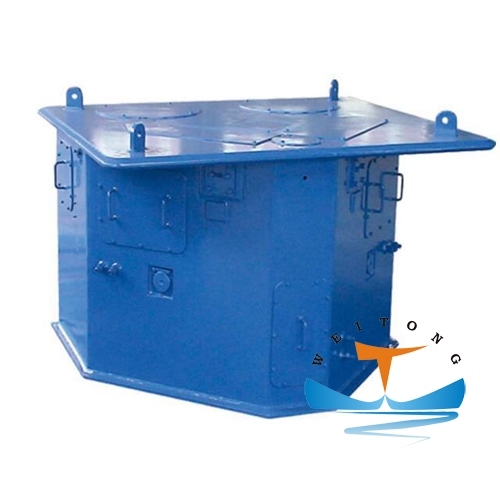

Hydraulic Shark Jaw with Towing Pin

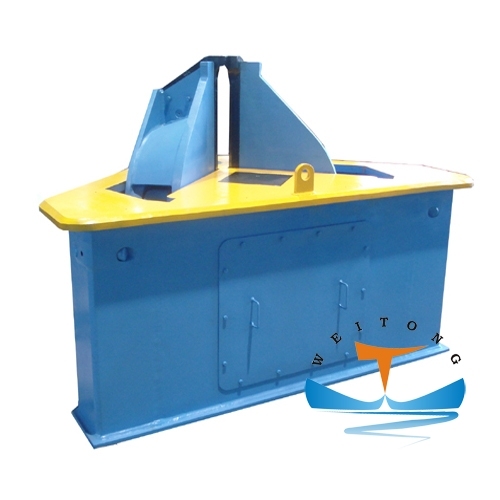

Hydraulic Triplex Shark Jaw
