Home > Marine Mooring Equipment > Anchor Chain and Accessories > Anchor Chain

Anchor Chain

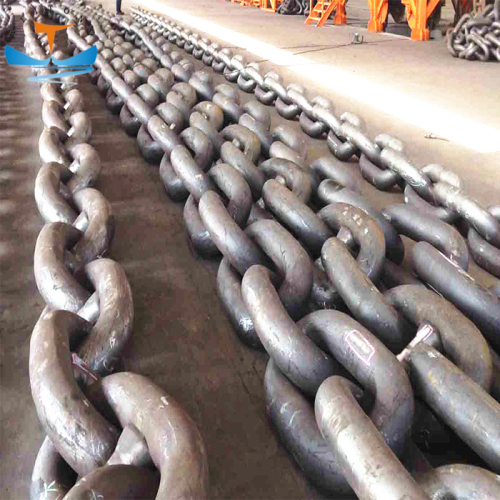

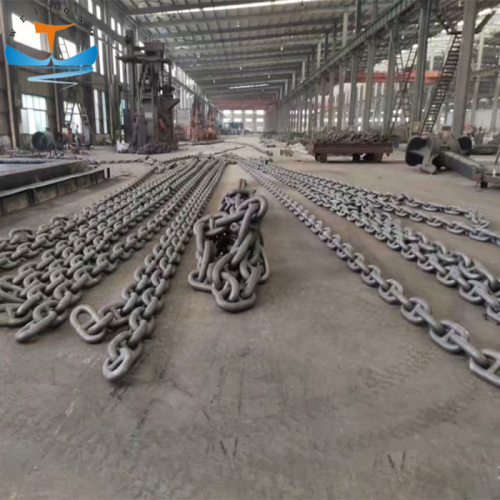

Stainless Steel Link Stud Ship Anchor Chain For Marine

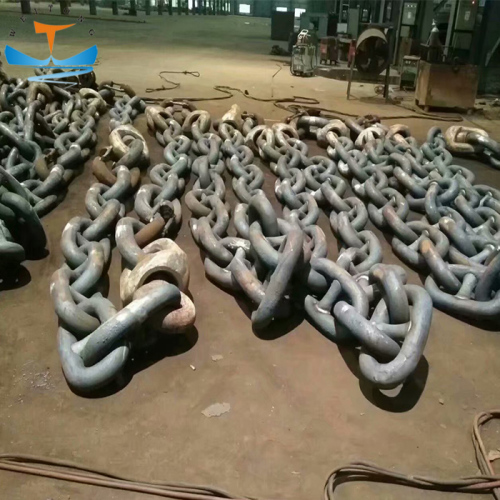

Marine Anchor Chain
Anchor chain grade is AM1 to Am3, diameter from Ø11mm to 162mm, both Stud Anchor Chain & Studless Anchor Chain are available.
Material: CM370, CM490,CM690
Grade: AM1,AM2, AM3
Application: various vessels/ships
Surface:   Electro galvanized
                 Blue white zinc plated
Hot dipped galvanized
Black painted
Self color
Polishing treated
Plastic spraying
Marine Anchor Chain Certificate: ABS, LR, BV, DNV, NK, GL, KR, NK, IRS,CCS etc.

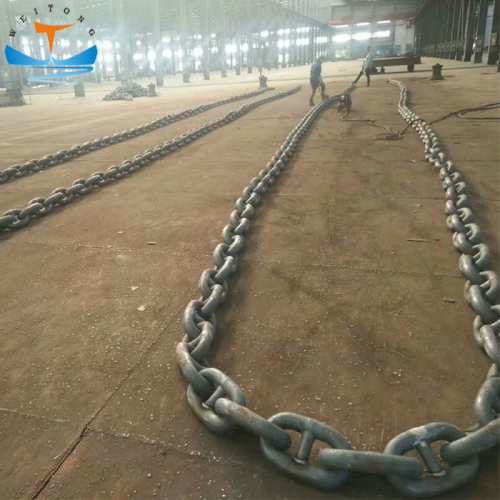

Marine Anchor Chain Stud Link Anchor Chain Specification
Certificate: ABS,LR,NK,DNV,GL,RIS,BV,KR, CCS

Specification

Chain Diameter (mm)	Breaking Load (KN)			Proof Load(KN)			Weight
Chain Diameter (mm)	AM1	AM2	AM3	AM1	AM2	AM3	(kg/m)
11	52	72	102	36	52	72	2.65
12.5	66	92	132	46	66	92	3.42
14	82	116	165	58	82	116	4.29
16	107	150	216	76	107	150	5.61
17.5	127	179	256	89	127	179	6.71
19	150	211	301	105	150	211	7.91
20.5	175	244	349	123	175	244	9.2
22	200	280	401	140	200	280	10.6
24	237	332	476	167	237	332	12.61
26	278	389	556	194	278	389	14.8
28	321	449	642	225	321	449	17.17
30	368	514	735	291	368	514	19.71
32	417	583	833	328	417	583	22.43
34	468	655	937	366	468	655	25.32
36	523	732	1050	406	523	732	28.38
38	581	812	1160	448	581	812	31.62
40	640	895	1280	492	640	895	35.04
42	703	981	1400	538	703	981	38.63
44	769	1080	1540	585	769	1080	42.4
46	837	1170	1680	635	837	1170	46.34
48	908	1270	1810	686	908	1270	50.46
50	981	1370	1960	739	981	1370	54.75
52	1060	1480	2110	794	1060	1480	59.22
54	1140	1590	2270	851	1140	1590	63.86
56	1220	1710	2430	909	1220	1710	68.68
58	1290	1810	2600	969	1290	1810	73.67
......	......	......	......	......	......	......	......
......	......	......	......	......	......	......	......
162	7990	11180	15980	5590	7990	11180	574.74

Marine Anchor Chain Studless Anchor Chain Specification
Chain Diameter (mm)	Tension Load	Tension Load	Tension Load	Tension Load
	(KN)	(KN)	(KN)	(KN)
	M2		M3
24	135	299	210	476
26	158	351	241	556
28	183	407	286	642
30	211	468	311	735
32	239	531	335	833
34	270	600	386	937
36	302	672	442	1050
38	337	749	501	1160
40	373	829	563	1280
42	412	915	597	1400
44	452	1000	630	1540
46	494	1098	698	1680
48	583	1196	771	1810
50	584	1294	844	1960
