Name: DJ-2 Rudder Angle Indicator
Brand: WEITONG MARINE
SKU: 03409
Availability: InStock
Rating: 5 (1 reviews)

Description

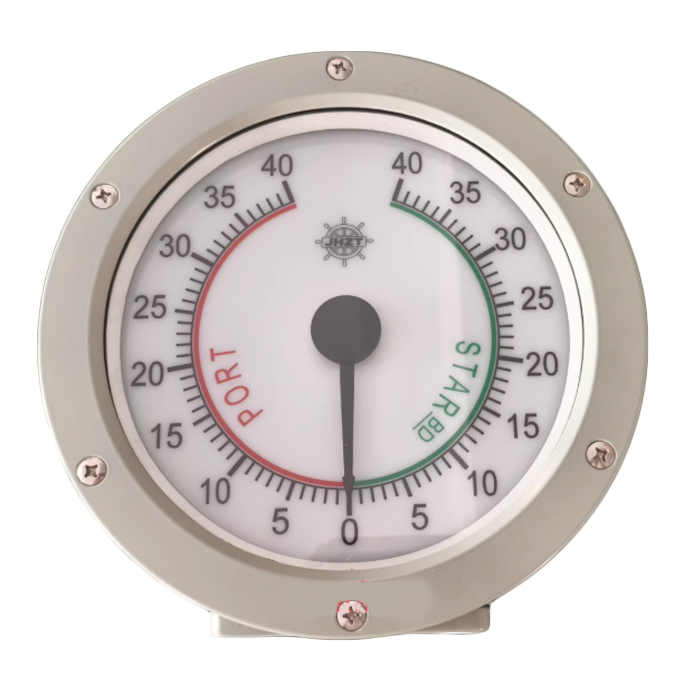

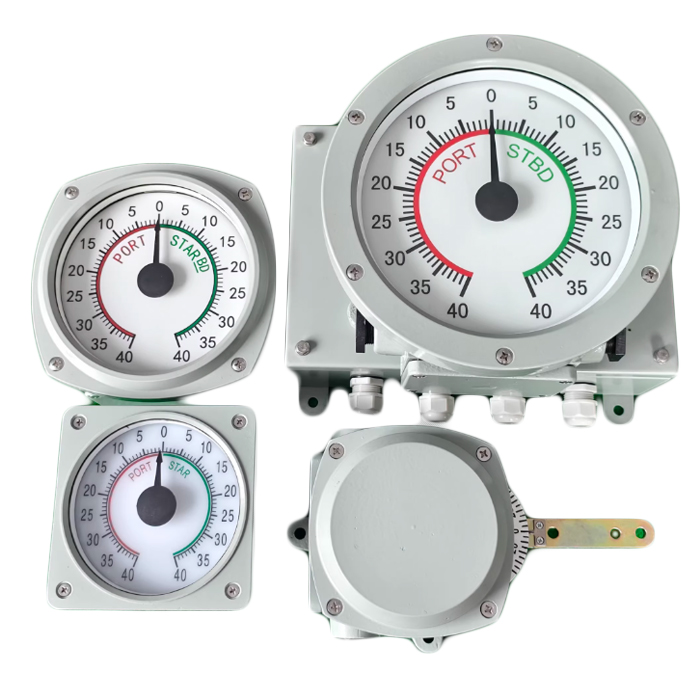

DJ-2 Rudder Angle Indicator

Application:shows rudder position of ships, installed in bridge, engine room, steering gear room

Name			AC rudder angle indicator
Power supply			AC220V/110V 50Hz/60Hz allowable variation range: ± 5%;
Ambient temperature			-25 ℃ ~ +55 ℃
Relative Humidity			95%
Chatter			Acceleration 7g, frequency of 80 to 100 beats / min;
Shock			Two
VDR Interface			to ± 10V signal or 4 ~ 20mA signal Optional
Protection class			OQF type is IP22, ODS type is IP20, IP56 rest
Other			Dial lighting in all black case, dial 1.5 meters away from the place where we can clearly read the present value in degrees.. Pointer damping time less than 3 seconds;
Model	Visual diameter	Dimming form	Form Protection	Remark
OQF1D-1/2	Φ100	Transfer to other localities	IP22	Square embedded
OQF1E-1/2		-----------
QOF2D-1/2	Φ130	Transfer to other localities
QOF2E-1/2		-------
OQY3D-1/2	Φ160	Transfer to other localities		Round embedded
OQY3E-1/2		------
OTN3A-1/2	Φ160	In tune	IP56	Square round Wall
OTN3B-1/2		Transfer to other localities
OTN4A-1/2	Φ200	In tune
OTN4B-1/2		Transfer to other localities
OTY4A-1/2	Φ200	In tune		Round embedded
OTY4B-1/2		Transfer to other localities
ODS6A-1/2	Φ350	In tune	IP20	Three-side top mount
ODS6B-1/2		Transfer to other localities
ODS7A-1/2	Φ450	In tune
ODS7B-1/2		Transfer to other localities
