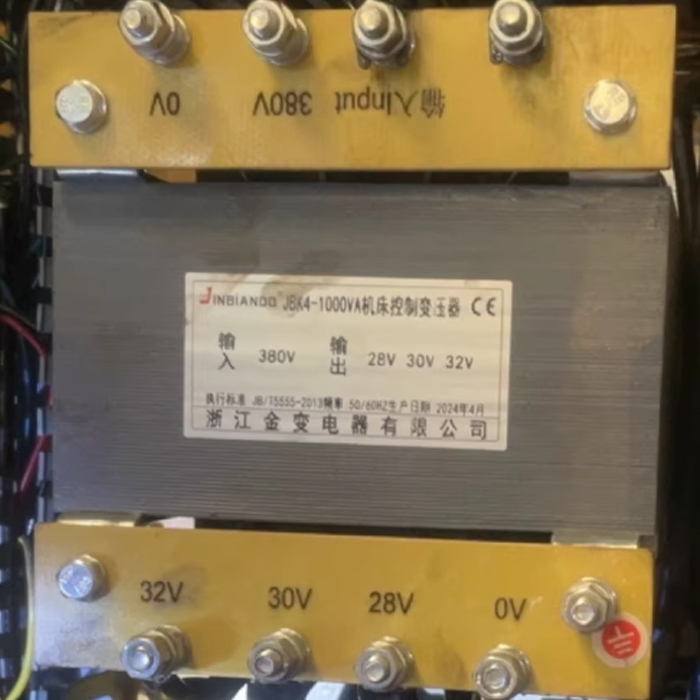

JBK4-400VA/JBK4-500VA/JBK4-630VA/JBK4-800VA/JBK4-1000VA Control Transformer

Item No.: 03424
JBK control transformer design refers to relevant standards VDE0550, IEC204-1 and GB5226. There are press-fit and and plug-in two connection methods are adopted and equipped with terminals to prevent touching protection requirements by accident.
Description
Description
JBK4-400VA/JBK4-500VA/JBK4-630VA/JBK4-800VA/JBK4-1000VA Control Transformer

JBK series machine tool control transformer is applied to circuit of AC 50Hz/60Hz and output voltage up to 660V.It is usually used as the control power-supply of kinds of machine tool and mechannical equipments.and also as the power supply for local illumination indicator lamp.

This production has the advantage of stable operation,low consumption,small volume,safe connection,large application.

It conforms to standards of IEC/EN61558.


Technical Specifications:

Model No.(Table 5) Install dimension mm Install bore mm Shape mm
A C K J B D E
JBK4-40VA 55 50 6 9 78 80 92
JBK4-63VA 55 50 6 9 78 80 92
JBK4-100VA 65 65 6 9 84 96 95
JBK4-160VA 85 71 6 9 96 100 110
JBK4-250VA 85 82 6 9 96 112 110
JBK4-400VA 102 86 8 14 12 106 128
JBK4-630VA 110 110 8 14 150 104 150
